Soil Resistivity Testing Services in India

Soil Resistivity Test

The goal of soil resistivity testing is to obtain measurements that help model the electrical performance of the earth for a specific earthing system. Accurate results depend on proper investigation and correct test execution. Follow these guidelines:

Initial Research: Gather background data, including information on nearby metallic structures and the area's geological, geographical, and meteorological characteristics. This includes understanding soil strata, water retention properties, and recent rainfall data to assess if results are realistic
Factors Influencing Soil Resistivity: Soil resistivity is affected by texture, mineral composition, grain size, compaction, temperature, and moisture content. It's crucial for designing effective earthing systems.
Enhancing Earthing Resistance: Use Backfill Compounds to improve earthing resistance in poor soil conditions. Place safe earth electrodes as deeply as possible, preferably in deeper strata.

Calculating Soil Resistivity (Wenner Method): ρ = 2πAR

ρ= Average soil resistivity to depth A (ohm-cm)
π = 3,1416
A = Distance between electrodes (cm)
R = Measured resistance value (ohm)

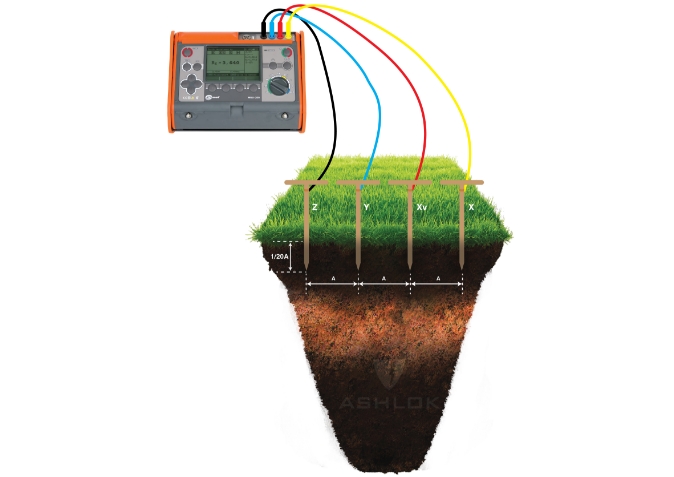

Soil Testing services provided byAshlok safe earthing

Four-Point Method:

Four electrodes spaced equidistantly and driven vertically into the ground
A test current I passes between the outer electrodes, measuring the potential V between the inner electrodes
V/I provides resistance R
The tester uses Ohm’s Law (V = IR) to calculate soil resistance

Benefits of Soil Resistivity Testing:

Ensures a well-protected and professional facility
Helps select the type and material of earth electrode
Demonstrates that many short rods are often more effective than a few long ones
Emphasizes the importance of the earthing system in site planning, which can be enhanced with conventional or advanced methods using electrodes with conductive backfill.

DESIGN & COMMISSIONING SERVICES

Ashlok’s design and commissioning service epitomizes excellence, blending innovation with precision. Meticulously crafted solutions cater to diverse needs, ensuring seamless integration and optimal performance. Our team’s expertise shines in every detail, from conceptualization to execution, setting industry standards and delivering unparalleled satisfaction. Trust Ashlok for visionary design and flawless commissioning experiences.

E.S.E Conventional Lightning Protection Design

At Ashlok, our E.S.E Conventional Lightning Protection Design service combines cutting-edge technology with expert knowledge to create comprehensive lightning protection solutions. Our designs are tailored to your specific requirements, ensuring the utmost safety for your property and assets.

Risk Assessment of Lightning Protection Design

With our Risk Assessment of Lightning Protection System service, we meticulously analyze potential vulnerabilities in your lightning protection setup. Our thorough assessment helps identify areas of improvement, enabling us to fortify your system and enhance its overall effectiveness.

Commissioning of Lightning Protection Design

Ashlok’s Commissioning of Lightning Protection System service ensures that your lightning protection system is installed and integrated seamlessly. Our expert team carefully oversees the commissioning process, guaranteeing that your system operates at peak performance and provides the highest level of safety.

Testing of Existing Lightning Protection System and Earthing System

Our Testing of Existing Lightning Protection System and Earthing System service offers comprehensive evaluations of your current setup. Through meticulous testing and analysis, we identify any potential issues or weaknesses, allowing us to recommend and implement necessary improvements to ensure optimal system functionality and safety.
