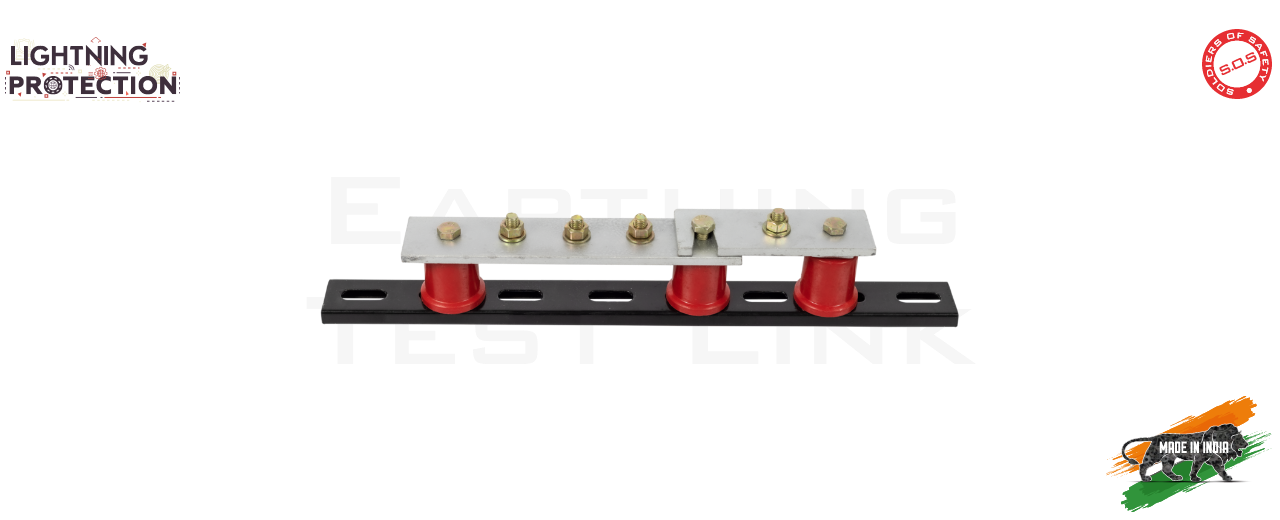

Ashlok Safe Earthing Electrode Limited - Earthing Test Link for reliable earthing system verification and testing

Earthing Test Link

The Earthing Test Link enables swift and effortless separation of distinct segments within the earthing system, streamlining inspection procedures.

A test link is a bolted, removable link between the earth conductor and the earth electrode. Opening it isolates that pit so its resistance can be measured on its own during periodic testing. Ashlok earthing test links are made in copper or GI with halogen-free polyamide insulators and are supplied in 1, 3, 5 and 7-way configurations; custom bars are made to your specification.

Attributes

  • Establishes a convenient, centralized earthing and bonding point.
  • Comprises Copper busbar, galvanized steel brackets for corrosion resistance, halogen-free polyamide insulators, and zinc-plated steel hardware
  • Constructed using GI or Copper materials
  • Busbar Dimensions: 25 x 3 | 50 x 6 | 40 x 6
  • Connecting Links: 1 | 3 | 5 | 7.
  • Customized bars can be tailored to customer specifications
Material
Copper or Galvanised Iron (GI) busbar
Busbar size (W × H)
25 × 3 mm · 40 × 6 mm · 50 × 6 mm
Connecting links (ways)
1 · 3 · 5 · 7
Insulators
Halogen-free polyamide
Brackets
Galvanised steel (corrosion-resistant)
Hardware
Zinc-plated steel
Customisation
Custom bar length / ways on request
Typical use
Test point on the earth lead of each earth pit; isolates the pit for resistance measurement
